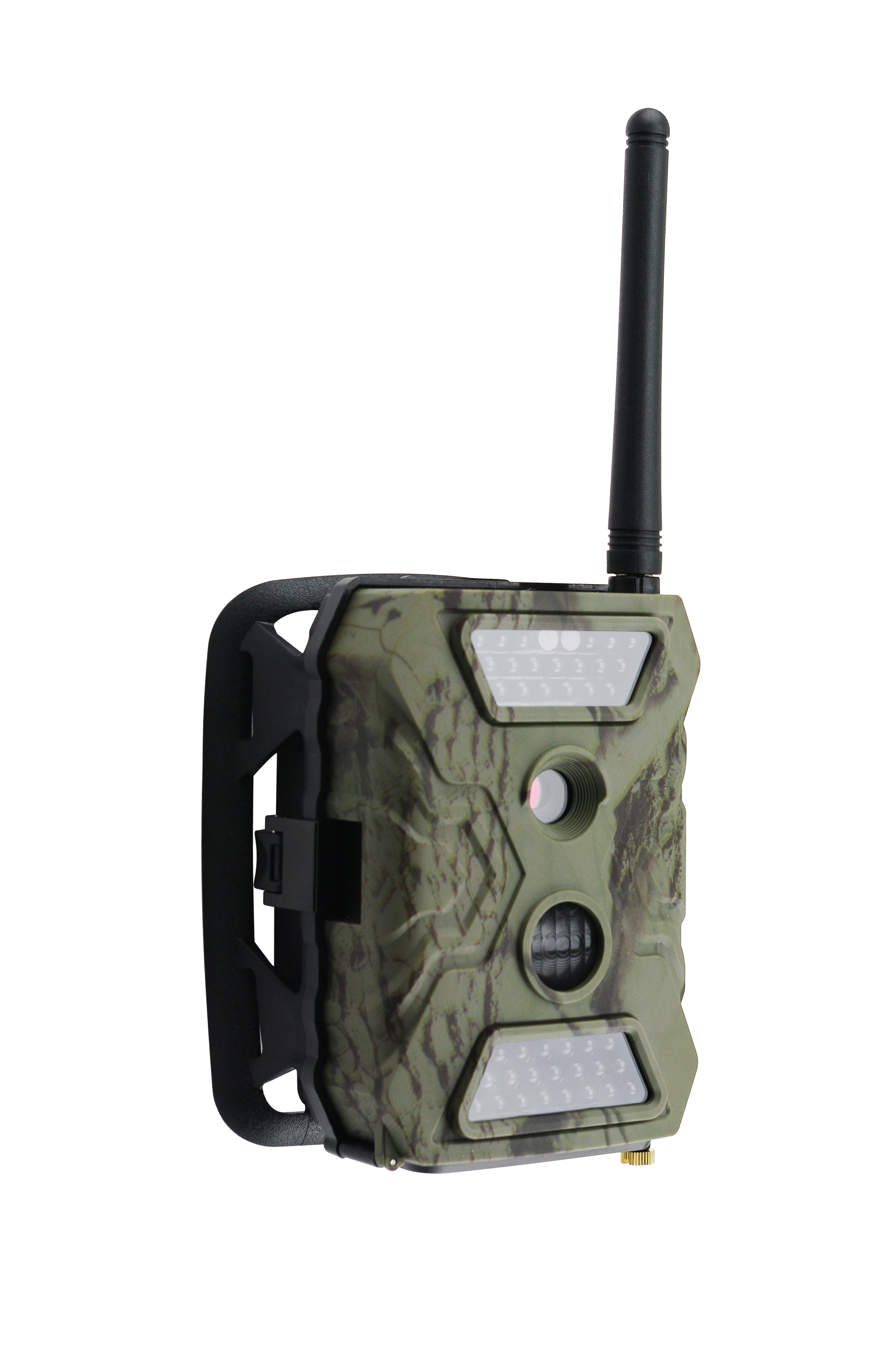

Scouting Trail Camera
Model: S680M
|
Image Sensor |
5 Mega Pixels Color CMOS |
|
Effective Pixels |
2560x1920 |
|
Day/Night Mode |
Yes |
|
IR arrange |
20m |
|
IR Setting |
Top: 19 LED, Foot: 21LED |
|
Memory |
SD Card (8MB – 32 GB) (sells separately) |
|
Operating keys |
10 |
|
Lens |
F=3.0; FOV=52°; Auto IR-Cut-Remove (at night) |
|
LCD Screen |
2" TFT, RGB, 262k |
|
PIR Sensitivity |
3 sensitive level: High / Normal / Low |
|
PIR distance |
12m – 15m |
|
PIR Angle |
90° |
|
Picture size |
5MP/8MP/12MP = 2592x1944/3264x2448/4000x3000 |
|
Picture Format |
JPEG |
|
Video resolution |
1080P,720P, 640x320, 320x160 |
|
Video Format |
AVI |
|
Video Length |
1-60sec. programmable |
|
Shooting Numbers |
1-7 |
|
Trigger Time |
0.8-1s |
|
Trigger Interval |
2s-5s |
|
Camera + Video |
Yes |
|
Playback Zoom in |
2x, 3x, 4x |
|
Time Lapse |
Yes |
|
Beep Sound |
ON/OFF |
|
SD Card cycle |
ON/OFF |
|
Operation Power |
Battery: 6V; DC: 12V |
|
Battery Type |
8AA(not includes) |
|
External DC |
12V |
|
Stand-by Current |
0.15mA |
|
Stand-by Time |
4~6 months (4×AA~8×AA) |
|
Auto Power Off |
auto switch to mode "ON" in 60s without any operations |
|
Power Consumption |
210mA (+650mA when whole 40 IR LEDs light up) |
|
Low battery Alert |
4.8V (4.8V: alert; 4.6V: power off) |
|
Interface |
TV out/USB/SD Card/DC Port |
|
Mounting |
Strap; Tripod |
|
Operating Temperature |
-20°C to 60°C |
|
Storage temperature |
-30 °C to 70°C |
|
Operation Humidity |
5%-90% |
|
Waterproof spec |
IP54 |
|
Dimensions |
131.42 x98.72 x77.44mm |
|
Weight |
300g |
|
Certification |
CE FCC RoHs |

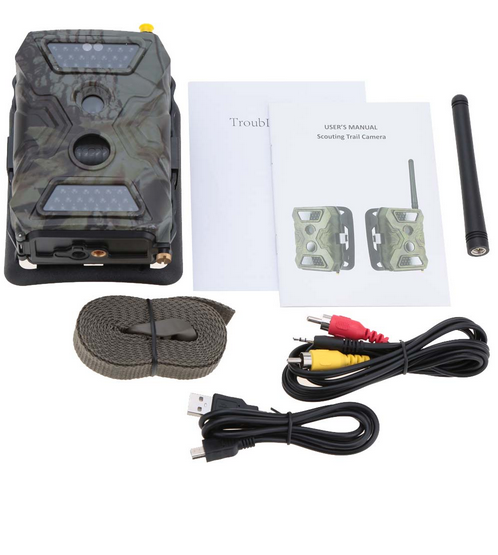

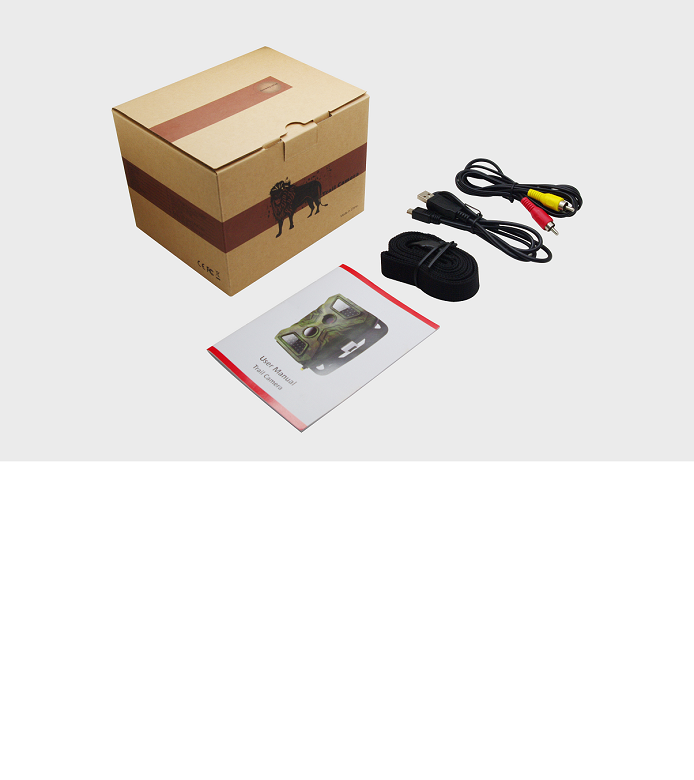

Package Contents:
• 1 x Digital Camera
• 1 x USB Cable
• 1 x TV Cable
• 1 x Strap
• 1 x User Manual
• 1 x Charger (this additional accessory is recommended by the original supplier for the convenience of the customers)
